A Split Type AC is an air conditioning system that consists of two main parts: the indoor unit and the outdoor unit, which are connected by refrigerant lines.
What Is a Split Type AC?

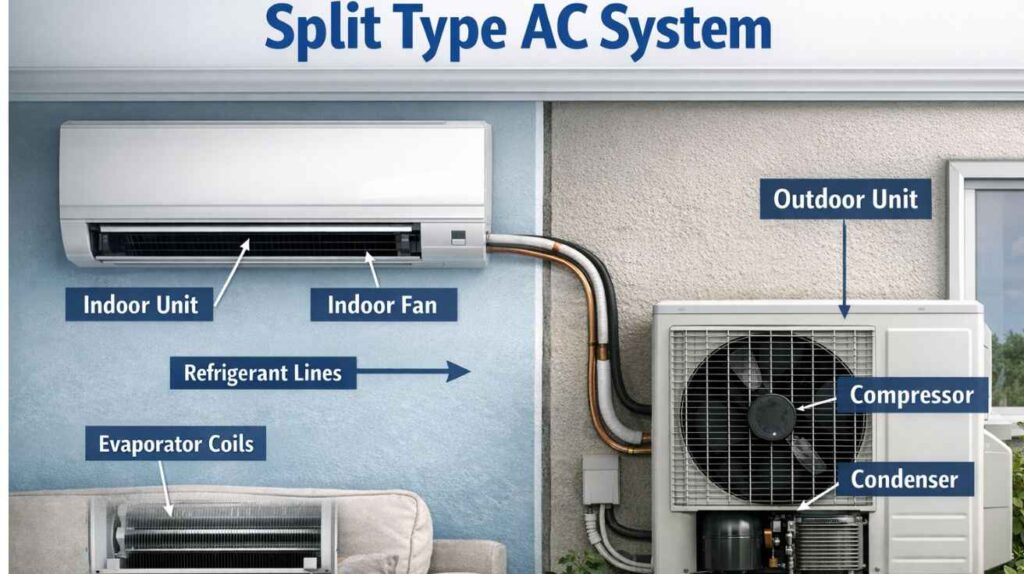

A split type AC is a cooling system with two main units — an indoor unit mounted inside your space and an outdoor unit placed outside. The indoor unit houses the evaporator and fan, while the outdoor unit contains the compressor and condenser coil.
These two are connected by refrigerant lines that carry heat from indoors to the outside environment. This design separates noisy components and allows flexible placement and quieter indoor operation compared with window or packaged AC units.
How Split AC Systems Works?
Split ACs use a refrigerant cycle to cool air. Warm air from inside passes over cold evaporator coils in the indoor unit. The refrigerant absorbs heat and carries it outside, where the outdoor unit’s compressor and condenser release it.
Cooling continues until the thermostat reaches your set temperature. This efficient heat transfer process allows split AC systems to provide consistent cooling with optimized energy use.
Types of Split AC Units
Single Split
A single split system cools one room using one indoor and one outdoor unit — ideal for small spaces.
Multi Split
Multi split connects multiple indoor units to a single outdoor unit. This saves outdoor space and gives zoned cooling options.
Mini Split (Ductless)
Mini split units don’t require duct work and are perfect when installing ducts isn’t practical. Multiple indoor heads can serve different rooms for individualized comfort.
Benefits of Split Type AC
Energy Efficiency: Split AC service often have high SEER ratings, which means they use less energy to cool the same space compared with older or ducted systems.
Zoned Cooling: You can cool only occupied rooms, lowering energy bills.
Quiet Operation: Since the loud compressor sits outside, indoor noise drops dramatically.
Flexible Installation: Indoor units mount on walls, ceilings, or floors depending on room layout.
Improved Indoor Air Quality: Many models include advanced filters to reduce dust and allergens.
Space Saving & Aesthetics: Sleek indoor designs don’t block windows and enhance room look.
Drawbacks & Considerations
Higher Upfront Cost: Compared with basic window or portable units, split type AC usually costs more to purchase and install.
Professional Installation Required: Correct refrigerant handling and sealing between indoor/outdoor units needs an HVAC technician.
Outdoor Unit Space: You must allocate safe outdoor space for the unit.
Maintenance Needs: Filters and coils need regular cleaning to maintain efficiency and avoid performance issues.
How to Maintain Your Split Type AC:
Regular maintenance is essential to keep your split type AC working at optimal performance. Key maintenance tasks include:
- Cleaning or replacing filters to ensure proper airflow.
- Checking refrigerant levels to avoid underperformance.
- Cleaning condenser coils to maintain cooling efficiency.
- Inspecting and sealing refrigerant lines to avoid leaks.
Common Split AC Issues
Some common issues with split AC systems include:
- Insufficient cooling due to low refrigerant levels or dirty filters.
- Strange noises caused by motor or fan problems.
- Water leakage from improper drainage or blocked condensate lines.
- Faulty thermostats or sensors causing erratic temperature control.
How to Choose the Right Split AC (Expert Tips)
Size & BTU: Choose a unit with the right cooling capacity (BTU) for your room size — too small won’t cool efficiently, too large wastes energy.
SEER Rating: Look for high SEER values for better long‑term efficiency and lower bills.
Inverter Technology: Units with inverter compressors modulate speed for quieter and more efficient performance.
Warranty & Service: Always check warranty length on compressor and parts.
Brand & Features: Smart controls, sleep modes, air purification, and timers can make operation easier.
Why Choose FixitNow for Split AC Repair?
FixitNow offers professional repair services for all types of split AC systems. Whether it’s a refrigerant leak, clogged filters, inverter faults, or cooling issues, our certified technicians provide quick and reliable solutions to restore your comfort. With transparent pricing and a satisfaction guarantee, we are your go-to HVAC experts in Dubai and the UAE.
Frequently Asked Questions
Q1: Is a split AC better than a window unit?
A: Yes — split ACs are quieter, more efficient, and more flexible in placement.
Q2: How long does a split type AC last?
A: With proper maintenance, most units last 10–15 years.
Q3: Can I install a split AC myself?
A: No — professional installation ensures correct refrigerant connection and optimal performance.
Q4: Do all split ACs cool and heat?
A: Many modern models offer heat pump capability for year‑round comfort.
